Fully Automatic 4 Tier Battery Cage System 160 Capacity For Chicken Poultry Farm Doris

Product Categories
Hebei Best Machinery And Equipment Co., Ltd
Contact Now

Fully Automatic 4 Tier Battery Cage System 160 Capacity For Chicken Poultry Farm Doris

  • 1
  • 2
  • 3

Brand Name : BEST

Model Number : A or H type layer battery cage system

Certification : ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC

Place of Origin : China

MOQ : 1 set

Price : USD 65-200/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Set/Month

Delivery Time : 5-14 work days

Packaging Details : wooden box, pallet or full container no package

Product name : layer battery cage system

Surface Treatment : Electrostatic Spray

Capacity : 160 birds

Core Components : cage mesh and cage frame

Each tier : 5cells or 5 doors

Life Time : 8 - 25 years

Wire diameter thickness : 2.4mm to 3.8mm

Cage frame type : angle iron or U shaped stand

Feeder trough color : new material white

Drinker type : stainless steel nipple

Contact Now

Fully Automatic Layer Battery Cage System 4 Tier 160 Capacity Cage For Chicken Poultry Farm Doris
Product description

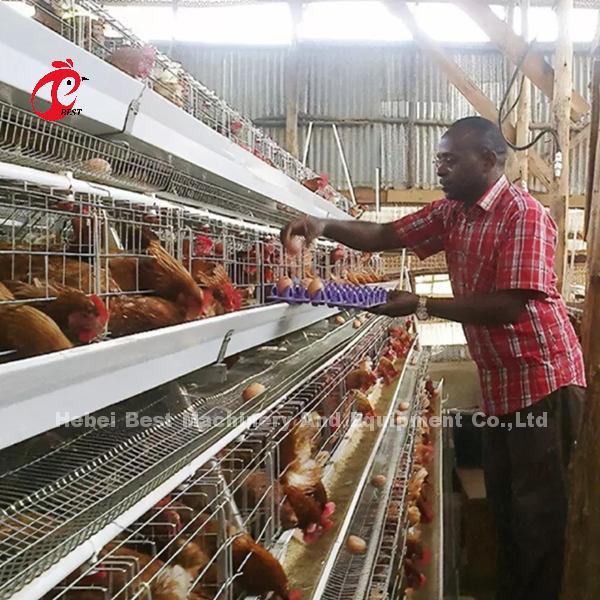

A type 4 tier 160 capacity layer cage always used in fully automatic chicken farm. Hot sale in Ghana, Zambia, Uganda, South Africa, Zimbabwe, Tanzania. The cage with hot dipped galvanized material, automatic drinking system with nipple drinker. When chicken touch nipples, they can drink clean water freely. When birds mouth not touch the nipples, the water stopped. The feeding hopper system can walk through orbit and easily do chicken feeds. And the fully automatic egg collection system save much labour cost and energy. The cage lifespan is over 20 years. This type cage with best quality, suit for big scale farm and long investment

Layer battery cage system parameter
Cage type A type layer battery cage system
Capacity 160 chicken
Size 2.2 meters by 2.4 meters by 1.95 meters
Cell size 38cm deep, 43cm long, front height 38cm, rear height 34cm
Each tier 5 cells or doors
Cage surface treatment cold galvanized or hot dipped galvanized
Customized broiler cage chicken cages can be customized
Feeder trough color white or green with new material
Cage door type sliding door or lifting door
Cage package type wooden box, pallet or full container no package
Cage fittings feeding trough, nipple drinker, water pipe, water tank and so on
Cage installation supply installation tools and instructions or video
What are the design drawings and farm planning of 20,000 fully automatic farms
1. Layout of chicken cage farm: 4 rows, 42 sets of hot dipped galvanized egg chicken coops in each row
2. Chicken house area: 100 meters long, 17 meters wide and 3.5 meters high
3. The distance between the chicken cages is 1.48m, and the space reserved is provided for feeding by the feeder and walking by workers
The distance between the chicken cage and the front and rear walls is 3.8m. The space reserved is provided for the automatic egg picking machine. Workers pick up eggs and place eggs
4. Suggestions on farm location: in the nearby suburbs, remote villages or urban remote forests, the price is cheap and the farm has good ventilation effect
5. Layer battery cage choose: A type 4 tier layer chicken cage. The cage whole size is 2.2 meters long, 2.4 meters width, 1.95 meters high. Each unit can contain 160 layers
Fully Automatic 4 Tier Battery Cage System 160 Capacity For Chicken Poultry Farm DorisFully Automatic 4 Tier Battery Cage System 160 Capacity For Chicken Poultry Farm Doris
